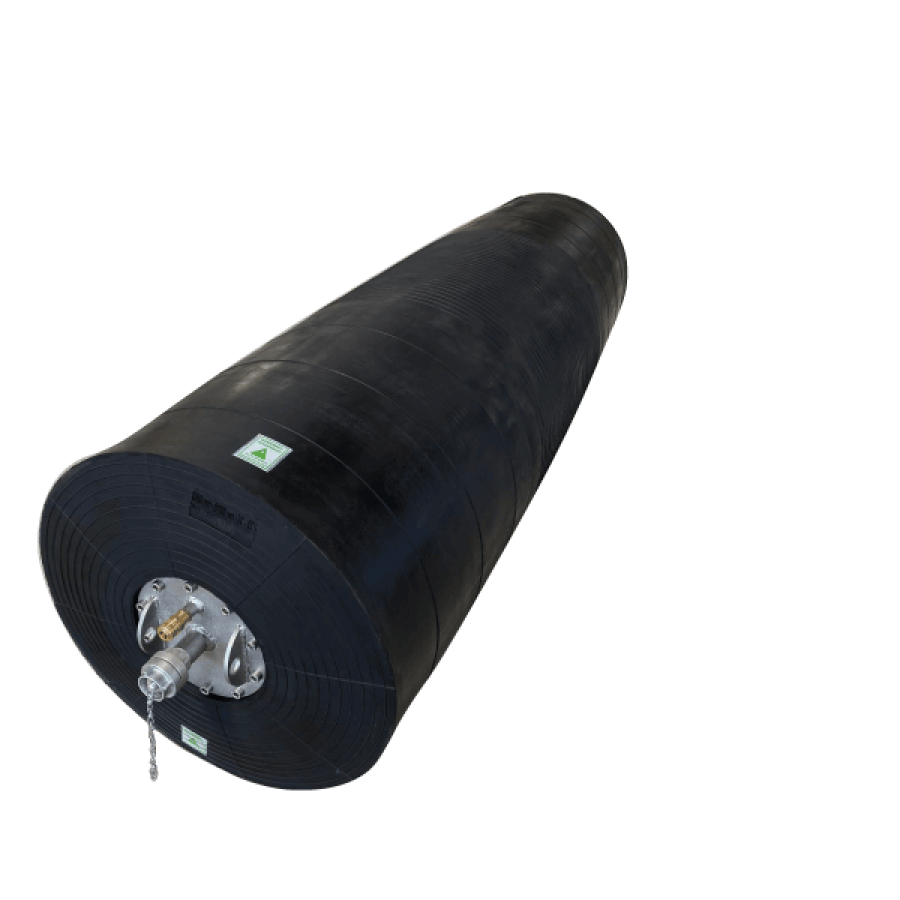

High Pressure Pipe Test Plug
TAPASAN High Pressure Pipe Test Plugs used to temporarily blocking the pipelines and with high back pressure and to ensure the evacuation of the fluid in the pipeline. It is produced by vulcanizing SBR+NR rubber and high strength fabrics. between -30°C and +70°C temperature resistant. It is the ideal product type for blocking lines with a water height of 10m and above. They are resistant up to 30m (3 Bar) back pressure.
Product Code: YKTB
| Product Code |
Size Usage Range | Max. Working Pressure |
Deflated Plug Dimensions | Back Pressure |
By-pass Size |
||
| Min. Diameter | Max. Diameter | Diameter | Total Lenght | ||||
| (mm) | (mm) | (bar) / (psi) | (mm) | (mm) | (bar) / (psi) | (inch) | |
| YKTB70100 | 70 | 100 | 6.0 / 87 | 68 | 375 | 3.0 / 44 | 1/2" |
| YKTB100150 | 100 | 150 | 6.0 / 87 | 91 | 550 | 3.0 / 44 | 1" |
| YKTB150200 | 150 | 200 | 6.0 / 87 | 140 | 550 | 3.0 / 44 | 2" |
| YKTB200300 | 200 | 300 | 6.0 / 87 | 187 | 650 | 3.0 / 44 | 2" |
| YKTB300400 | 300 | 400 | 6.0 / 87 | 286 | 850 | 3.0 / 44 | 2" |
| YKTB375500 | 375 | 500 | 6.0 / 87 | 361 | 1000 | 3.0 / 44 | 2" |
| YKTB500600 | 500 | 600 | 6.0 / 87 | 485 | 1100 | 3.0 / 44 | 2" |
| YKTB600700 | 600 | 700 | 6.0 / 87 | 586 | 1300 | 3.0 / 44 | 2" |
| YKTB8001000 | 800 | 1000 | 6.0 / 87 | 782 | 1300 | 3.0 / 44 | 2" |
| Product Code |
Size Usage Range | Max. Working Pressure |
Deflated Plug Dimensions | Back Pressure |
By-pass Size |
||
| Min. Diameter | Max. Diameter | Diameter | Total Lenght | ||||
| (inch) | (inch) | (bar) / (psi) | (inch) | (inch) | (bar) / (psi) | (inch) | |
| YKTB70100 | 2.8" | 4" | 6.0 / 87 | 2.67" | 14.76" | 3.0 / 44 | 1/2" |
| YKTB100150 | 4" | 6" | 6.0 / 87 | 3.58" | 21.65" | 3.0 / 44 | 1" |
| YKTB150200 | 6" | 8" | 6.0 / 87 | 5.51" | 21.65" | 3.0 / 44 | 2" |
| YKTB200300 | 8" | 12" | 6.0 / 87 | 7.36" | 25.59" | 3.0 / 44 | 2" |
| YKTB300400 | 12" | 16" | 6.0 / 87 | 11.25" | 33.46" | 3.0 / 44 | 2" |
| YKTB375500 | 15" | 20" | 6.0 / 87 | 14.21" | 39.37" | 3.0 / 44 | 2" |
| YKTB500600 | 20" | 24" | 6.0 / 87 | 19.09" | 43.30" | 3.0 / 44 | 2" |
| YKTB600700 | 24" | 28" | 6.0 / 87 | 23.07" | 51.18" | 3.0 / 44 | 2" |
| YKTB8001000 | 32" | 40" | 6.0 / 87 | 30.78" | 51.18" | 3.0 / 44 | 2" |
Accessories
Hava Hortumu
HH06 - 6m
HH10 - 10m
HH15 - 15m
HH25 - 25m
Air Test Adaptor
HTA01 - 1"
HTA02 - 2"
HTA03 - 3"
HTA04 - 4"
Pressure Controller with Regulator
RHK15 - 1.5 Bar
RHK25 - 2.5 Bar
RHK40 - 4.0 Bar

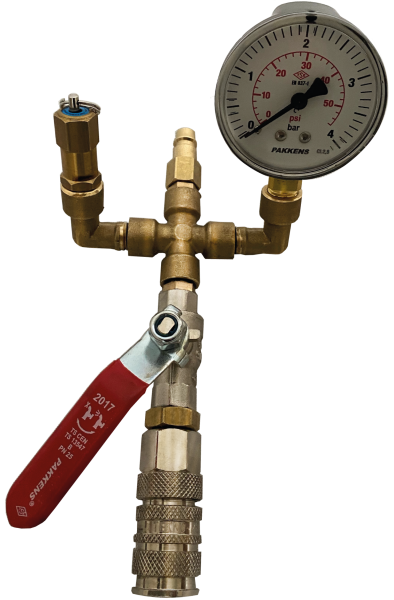

Pressure Controller with Safety Valve
Water Hose
STH01 - 1"
STH02 - 2"
STH03 - 3"
STH04 - 4"
Water Test Adaptor
STA01 - 1"
STA02 - 2"
STA03 - 3"
STA04 - 4"
Polylift Inflating Hose with Hook
